Zum Floor Plans

These sample floor plans show a few of the many outcomes possible with Unity’s design system. Based on your needs, your desires, your budget and your site, we guide you toward a particular platform as a starting point. We then assemble the design using components from our library of hundreds of pre-designed, pre-configured elements, saving significant expense and time. The end result is a home that fits your needs, your lifestyle and your site.

Download complete sets of floor plans: Tradd, Värm, Xyla, Zum, Nano.
Learn more about Unity’s Streamlined Design Path

Zum Streamlined E3

  • STREAMLINED
  • 1,407 SF
  • one story
  • 2 bedrooms
  • 2 baths
  • options shown: entry porch, screen porch, bedroom suite
See More »

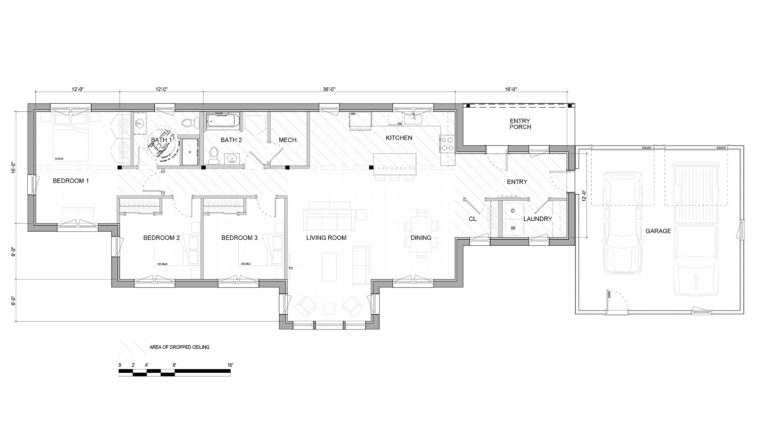

Zum Streamlined G11

  • STREAMLINED
  • 1,855 SF
  • 1 story
  • 3 bedrooms
  • 2 baths
  • options shown: entry porch, bedroom suite, bedroom bump, connector, 2 car garage
See More »

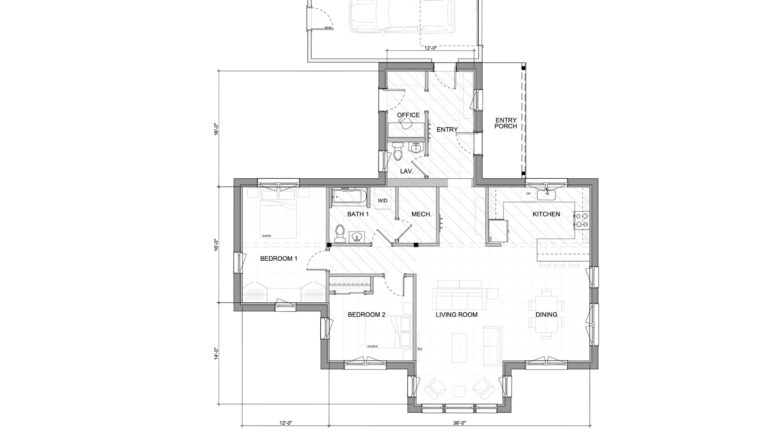

Zum Streamlined E7

  • STREAMLINED
  • 1,540 SF
  • 1 stories
  • 2 bedrooms
  • 1.5 baths
  • options shown: entry porch, bedroom bump, connector, 2 car garage
See More »

FPzum_01Zum211_F

Zum 211

  • one story
  • 1 bedroom
  • 1 bathroom
  • 1,085 square feet
  • options shown: deck
See More »

FPzum_03Zum332A_F

Zum 332A

  • one story
  • 2 bedrooms
  • 2 bathrooms
  • 1,570 square feet
  • options shown: entry porch, deck, 2-car garage
See More »

FPzum_04Zum233A_F

Zum 233A

  • one story
  • 2 - 3 bedrooms
  • 2 bathrooms
  • 1,570 square feet
  • options shown: screen porch, deck
See More »

FPzum_05Zum332B_F

Zum 332B

  • one story
  • 2 bedrooms
  • 2 bathrooms
  • 1,618 square feet
  • options shown: entry porch, deck, sunshades
See More »

FPzum_06Zum233B_F

Zum 233B

  • one story
  • 3 bedrooms
  • 2 bathrooms
  • 1,714 square feet
  • options shown: deck, 2-car garage
See More »

FPzum_08Zum354_F

Zum 354

  • one story
  • 4 bedrooms
  • 3 bathrooms
  • 1,967 square feet
  • options shown: deck, 2-car garage, sunshades
See More »
