Xyla Floor Plans

These sample floor plans show a few of the many outcomes possible with Unity’s design system. Based on your needs, your desires, your budget and your site, we guide you toward a particular platform as a starting point. We then assemble the design using components from our library of hundreds of pre-designed, pre-configured elements, saving significant expense and time. The end result is a home that fits your needs, your lifestyle and your site.

Xyla 212 2832

  • one story
  • 2 bedrooms
  • 1 bathroom
  • 1,032 square feet
  • options shown: entry porch, deck
See More »

Xyla 112 2836

  • one story
  • 2 bedrooms
  • 1 bathroom
  • 1,153 square feet
  • options shown: entry porch
See More »

Xyla 122 2836

  • one story
  • 2 bedrooms
  • 2 bathrooms
  • 1,238 square feet
  • options shown: entry porch, bump-out
See More »

Xyla 322A 2832

  • one story
  • 2 bedrooms
  • 2 bathroom
  • 1,250 square feet
  • options shown: entry porch, connector, 2 car garage
See More »

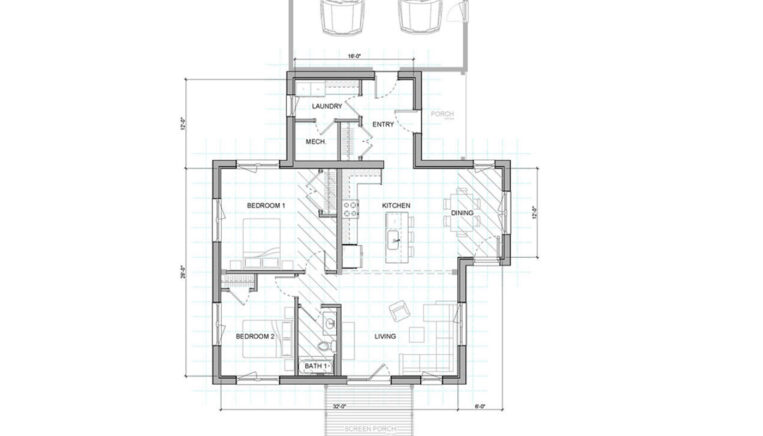

Xyla 332A 2832

  • one story
  • 2 bedrooms
  • 1 bathroom
  • 1,335 square feet
  • options shown: entry porch, connector, bump-out, 2 car garage, screen porch
See More »

Xyla 322B 2836

  • one story
  • 2 bedrooms
  • 2 bathrooms
  • 1,371 square feet
  • options shown: entry porch, connector, 2 car garage
See More »

Xyla 123 2832

  • one story
  • 3 bedrooms
  • 2 bathrooms
  • 1,400 square feet
  • options shown: entry porch, master suite
See More »

Xyla 332B 2836

  • one story
  • 2 bedrooms
  • 2 bathrooms
  • 1,465 square feet
  • options shown: entry porch, connector, screen porch, 2 car garage, bump-out
See More »

Xyla 333 2832

  • one story
  • 3 bedrooms
  • 2 bathrooms
  • 1,617 square feet
  • options shown: entry porch, 2 car garage, master suite, screen porch
See More »

Xyla 343 2836

  • one story
  • 3 bedrooms
  • 2 bathrooms
  • 1,823 square feet
  • options shown: entry porch, connector, bump-out, master suite, 2 car garage
See More »
