Floor Plans

These example floor plans show a few of the many outcomes possible with Unity’s design system. Based on your needs, your desires, your budget and your site, we guide you toward a particular platform as a starting point. We then assemble the design using components from our library of hundreds of pre-designed, pre-configured elements, saving significant expense and time. The end result is a home that fits your needs, your lifestyle and your site.

Download complete sets of floor plans: Tradd, Värm, Xyla, Zum, Nano.
Learn more about Our Streamlined Process

Värm Streamlined G1

  • STREAMLINED
  • 2,012 SF
  • two stories
  • 3 bedrooms
  • 2.5 baths
  • options shown: entry porch, screen porch
See More »

Värm Streamlined G3

  • STREAMLINED
  • 2,241 SF
  • two stories
  • 3 bedrooms
  • 2.5 baths
  • options shown: entry porch, screen porch, connector, 2 car garage
See More »

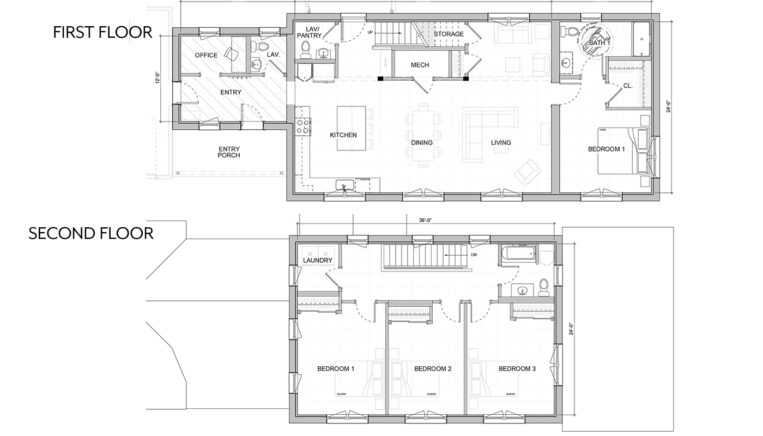

Värm Streamlined E6

  • STREAMLINE
  • 2,609 SF
  • two stories
  • 4 bedrooms
  • 2 baths, 2 half baths
  • Options Shown: Entry porch, bedroom suite, connector, 2 car garage
See More »

Xyla Streamlined E3

  • STREAMLINED
  • 1,474 SF
  • one story
  • 2 bedrooms
  • 2 baths
  • options shown: entry porch, screen porch, bumpout, connector, 2 car garage
See More »

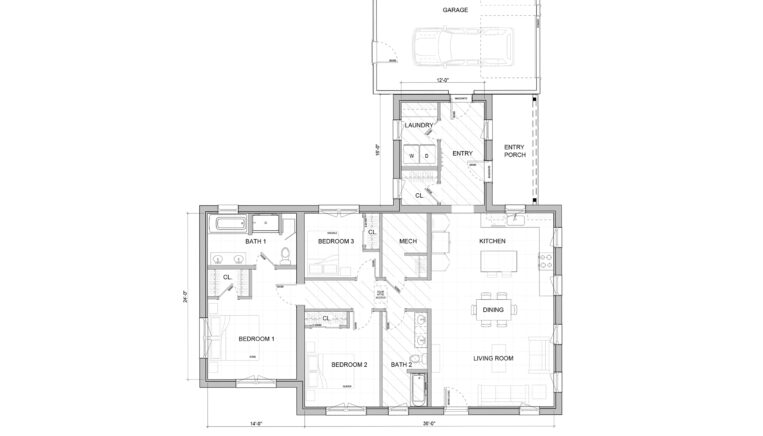

Xyla Streamlined E5

  • STREAMLINED
  • 1,756 SF
  • one story
  • 3 bedrooms
  • 2 baths
  • options shown: entry porch, bedroom suite, bump out, connector, 2 car garage
See More »

Xyla Streamlined G5

  • STREAMLINED
  • 1,635 SF
  • one story
  • 3 bedrooms
  • 2.5 baths
  • options shown: entry porch, screen porch, bedroom suite, connector, 2 car garage
See More »

Zum Streamlined E3

  • STREAMLINED
  • 1,407 SF
  • one story
  • 2 bedrooms
  • 2 baths
  • options shown: entry porch, screen porch, bedroom suite
See More »

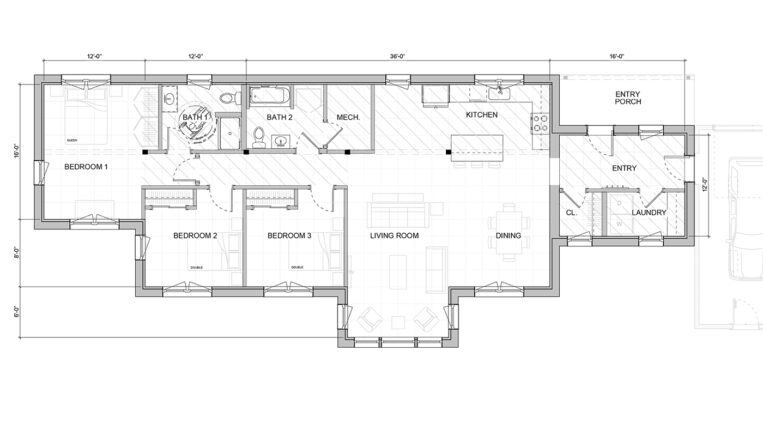

Zum Streamlined G11

  • STREAMLINED
  • 1,855 SF
  • 1 story
  • 3 bedrooms
  • 2 baths
  • options shown: entry porch, bedroom suite, bedroom bump, connector, 2 car garage
See More »

FPzum_08Zum354_F

Zum 354

  • one story
  • 4 bedrooms
  • 3 bathrooms
  • 1,967 square feet
  • options shown: deck, 2-car garage, sunshades
See More »

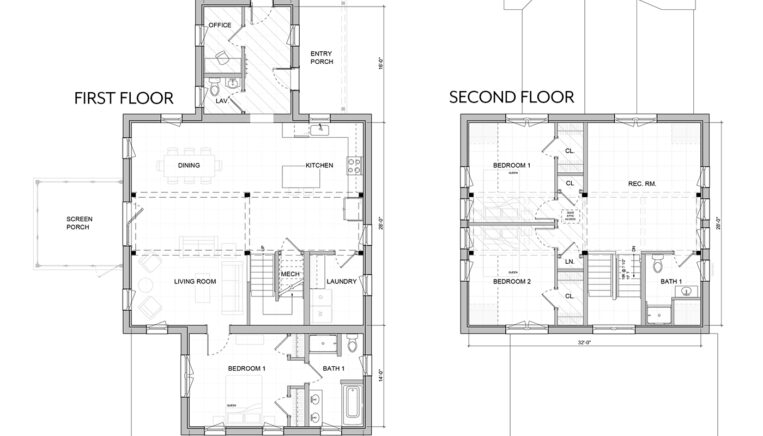

Tradd Streamlined E6

  • STREAMLINED
  • 2,673 SF
  • 2 stories
  • 3 bedrooms
  • 2.5 baths
  • options shown: entry porch, screen porch, bedroom suite, connector, garage
See More »

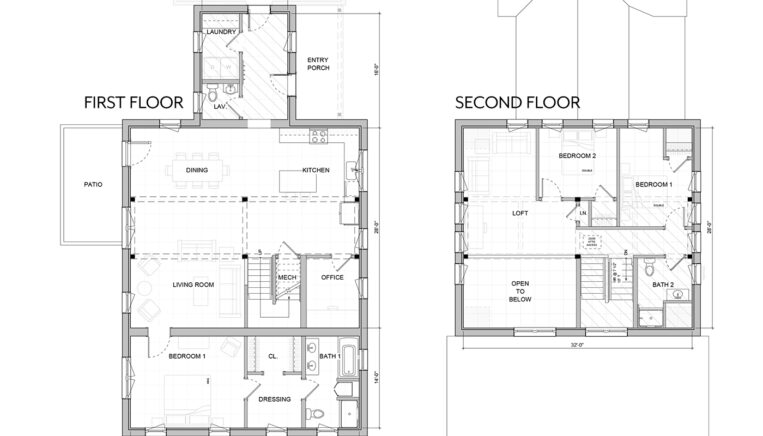

Tradd Streamlined E8

  • STREAMLINED
  • two stories
  • 3 bedrooms
  • 2.5 bathrooms
  • 2,785 SF
  • options shown: 2 car garage, connector, entry porch, bedroom suite
See More »

Tradd 333A 2832

Tradd 333A 2832

  • two stories
  • 3 bedrooms
  • 2.5 bathrooms
  • 2,770 square feet
  • options shown: entry porch, 2 car garage, screen porch
See More »

Värm 113 2032

Värm 113 2032

  • 2 stories
  • 3 bedrooms, 2.5 bathrooms
  • 1,518 square feet
  • options shown: entry porch, bracketed roof
See More »

FPxyla_01Xyla212_2832_F

Xyla 212 2832

  • one story
  • 2 bedrooms
  • 1 bathroom
  • 1,032 square feet
  • options shown: entry porch, deck
See More »

FPnano_01Nano2020-M_F

Nano 2020 M

  • one story
  • 1 bedroom
  • 1 bathroom
  • 477 square feet
  • options shown: sun shade
See More »

Zum Streamlined E7

  • STREAMLINED
  • 1,540 SF
  • 1 stories
  • 2 bedrooms
  • 1.5 baths
  • options shown: entry porch, bedroom bump, connector, 2 car garage
See More »

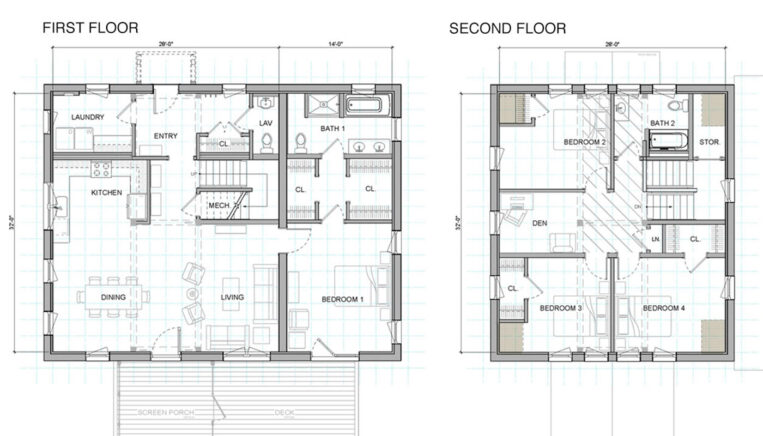

Tradd 124A 2832

Tradd 124A 2832

  • two stories
  • 4 bedrooms
  • 2.5 bathrooms
  • 2,543 square feet
  • options shown: deck, screen porch
See More »
